Fire Design of Steel Structures: Key Principles Explained
Steel structures are inherently vulnerable to high temperatures, with structural steel beginning to lose strength at around 400°C and potentially experiencing significant deformation at 600°C. Fire protection systems for steel structures are designed to maintain the structural integrity during a fire event, providing crucial time for evacuation and emergency response.
Key Highlights
Here’s what you need to know about fire protection for steel structures:
- Unprotected structural steel can lose up to 50% of its load-bearing capacity at temperatures as low as 550°C.
- The required fire resistance period typically ranges from 30 to 120 minutes, depending on building use and height.
- Common protection methods include intumescent coatings, board systems, and concrete encasement.
- Fire engineering assessments can often optimize protection requirements and reduce costs.
- UK Building Regulations require specific fire resistance periods based on building classification.
Understanding Fire Risks in Steel Construction
Steel’s high thermal conductivity makes it particularly vulnerable during fire events, allowing heat to transfer rapidly throughout the structure. Unlike some materials that char or form protective layers when exposed to fire, steel maintains its high conductivity as temperatures rise, accelerating the heating process. This characteristic means that unprotected steel structures can reach critical temperatures quickly, sometimes within 15-20 minutes of fire exposure.
The temperature-dependent properties of structural steel are well-documented through extensive testing. At approximately 400°C, steel begins to lose strength, and by 550°C, it may retain only about 50% of its room temperature yield strength. As temperatures approach 700°C, this drops to roughly 20%. These effects aren’t merely theoretical—they’ve been observed in real-world structural failures where inadequate fire protection led to catastrophic collapses.
Fire Resistance Periods and Regulatory Requirements
Fire resistance periods represent the duration that a structure must maintain its load-bearing capacity, integrity, and insulation properties during a standard fire test. These periods are prescribed in UK Building Regulations based on several factors, including the building’s height, use, floor area, and evacuation strategy. For most residential buildings under 5 meters tall, the minimum requirement is typically 30 minutes, while commercial buildings and taller residential structures may require 60, 90, or 120 minutes of fire resistance.
Following the Grenfell Tower tragedy, the UK has implemented stricter building safety laws with particular attention to fire safety. Approved Document B of the Building Regulations provides the primary guidance for fire safety in buildings, though it’s worth noting that performance-based fire engineering approaches can sometimes be used as an alternative to prescriptive measures. These approaches involve detailed analysis of specific fire scenarios relevant to the building, potentially leading to more efficient protection strategies while maintaining safety standards.
Common Fire Protection Methods for Steel
Intumescent coatings are among the most widely used fire protection methods for steel structures in modern buildings. These specialized paints expand when exposed to heat, forming an insulating char layer that can be up to 50 times their original thickness. The expanded coating creates a thermal barrier that slows heat transfer to the steel substrate. Thin-film intumescent coatings are typically 1-3mm thick and can provide up to 120 minutes of fire protection, making them particularly suitable for exposed architectural steelwork.
Board protection systems offer another effective approach, involving the encasement of steel elements with fire-resistant boards made from materials such as gypsum, calcium silicate, or vermiculite. These systems can provide fire resistance periods of up to 240 minutes and are often preferred in industrial settings or where mechanical damage is a concern. Unlike intumescent coatings, board systems provide immediate protection without requiring curing time and can be more cost-effective for large areas of steelwork that aren’t visually prominent.
Structural Design Considerations for Fire Conditions
When designing steel structures for fire conditions, engineers must consider both the applied loads during a fire scenario and the elevated temperature effects on material properties. According to Eurocode 3 (BS EN 1993-1-2), load combinations for fire design situations typically allow for reduced imposed loads compared to normal design conditions, acknowledging the low probability of maximum loads occurring simultaneously with a fire event. This load reduction, often around 40% for variable actions, helps offset the decreased material strength at elevated temperatures.
Temperature gradients within structural members present another important consideration, as different parts of a beam or column may reach different temperatures during a fire. This is particularly relevant for composite steel-concrete structures, where the concrete slab can act as a heat sink, creating significant temperature differentials. Modern structural fire design often employs finite element analysis to model these complex thermal behaviors and predict the actual structural response more accurately than simplified hand calculations. The choice between steel, concrete, or timber structural systems may be influenced by these fire performance considerations.
Fire Engineering Assessments and Optimization
Advanced fire engineering assessments can often justify reduced fire protection requirements compared to standard prescriptive approaches. These assessments consider the specific characteristics of the building, including fire loads, ventilation conditions, compartmentation, and active fire protection systems like sprinklers. By developing more realistic fire scenarios than the standard time-temperature curve used in testing, engineers can demonstrate adequate structural fire performance with optimized protection measures.
For complex or innovative structures, computational fluid dynamics (CFD) modeling may be employed to simulate fire development and smoke movement. This technique provides a three-dimensional representation of temperature distributions throughout the building over time. When combined with structural analysis, it forms the basis for a performance-based design that can be particularly valuable for large open spaces, atria, or buildings with unique geometries where prescriptive guidance may be overly conservative or inadequate.
Installation and Quality Control

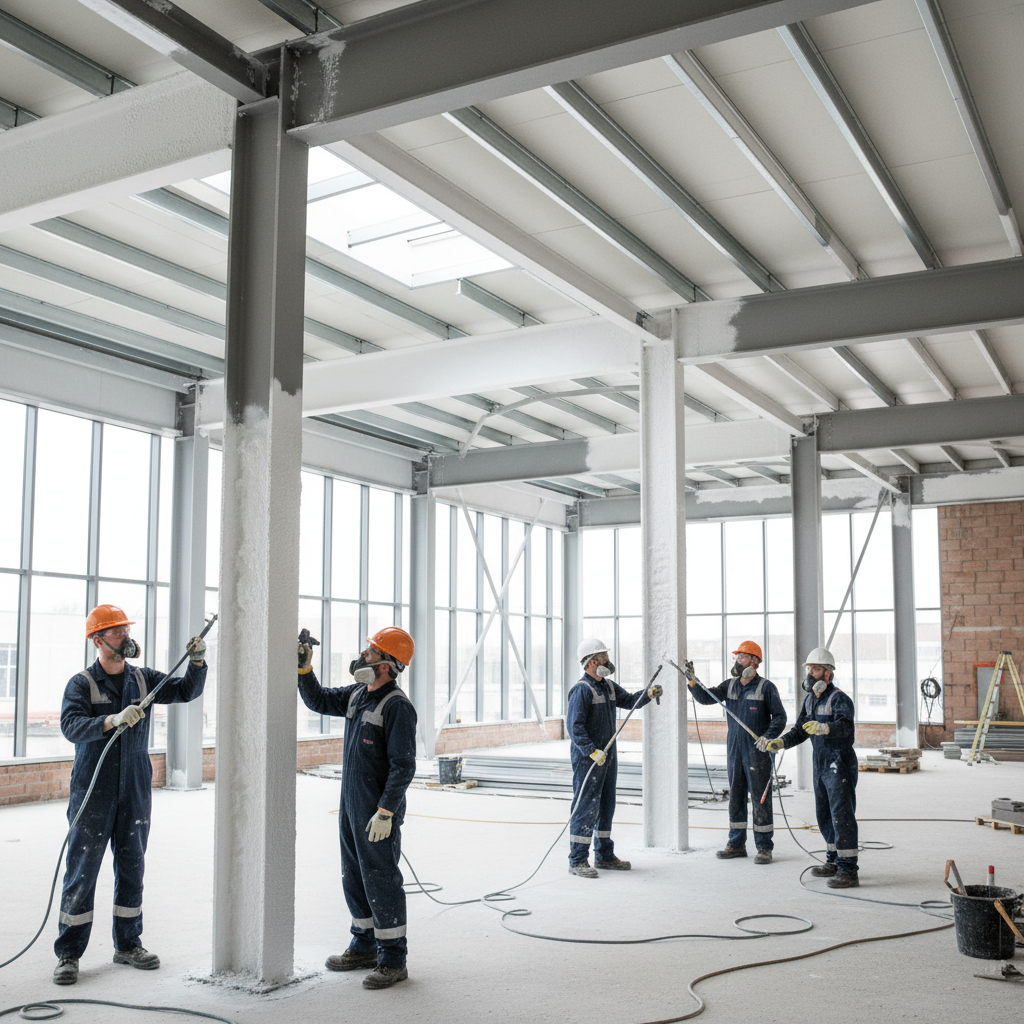

Proper installation and quality control are crucial for ensuring the effectiveness of fire protection systems. Intumescent coatings require careful application under controlled conditions, with thickness measurements taken at regular intervals to verify compliance with specifications. The dry film thickness (DFT) must be checked using specialized gauges, and environmental conditions during application and curing must fall within the manufacturer’s recommended ranges for temperature and humidity.
For board protection systems, the fixings and joints between boards require particular attention. Poorly executed joints can create thermal bridges that compromise the system’s performance. Third-party certification of both products and installers provides important quality assurance, with schemes such as those operated by Certifire and the Association for Specialist Fire Protection (ASFP) being widely recognized in the UK. Regular inspection and maintenance are also essential throughout the building’s life, as damage to fire protection can significantly reduce its effectiveness in an actual fire event.
Conclusion
Fire protection of steel structures remains a critical aspect of building safety, requiring careful consideration during design, construction, and throughout the building’s lifetime. By understanding the fundamental principles of steel behavior at elevated temperatures and implementing appropriate protection strategies, engineers can create structures that maintain their integrity during fire events. The ongoing development of performance-based design methods, coupled with advances in protection materials and technologies, continues to enhance both the safety and efficiency of steel structures in fire conditions.
