Understanding Load-Bearing Walls in Home Extensions
Load-bearing walls provide essential structural support that keeps your home standing safely and securely. Correctly identifying and addressing these critical elements is fundamental to any successful home extension project, preventing potentially dangerous structural failures and costly repairs.
Key Highlights
Here are the essential points to understand about load-bearing walls when planning your home extension:
- Load-bearing walls support the weight of floors and roof structures above them, while non-load-bearing walls only divide spaces.
- Removing or modifying load-bearing walls without proper engineering can lead to structural failure, sagging ceilings, and cracked walls.
- Professional assessment from a structural engineer is essential before removing or altering any suspected load-bearing wall.
- Temporary support structures must be installed before any load-bearing wall modifications begin.
- Steel beams, concrete lintels or reinforced timber frames are typically used to replace the support provided by load-bearing walls.
Identifying Load-Bearing Walls
Load-bearing walls can be identified through several key characteristics, though professional verification is always recommended. In most homes, exterior walls are almost always load-bearing, as they support the roof structure and transfer loads to the foundation. Interior walls that run perpendicular to floor joists typically carry structural loads, while walls running parallel to joists are less likely to be load-bearing. The location directly beneath another wall on an upper floor often indicates a load-bearing wall, as structural elements typically align vertically to efficiently transfer weight to the foundation.
Checking your home’s original architectural plans can provide definitive information about which walls are structural. If plans aren’t available, examine your attic or basement where exposed structural elements may reveal which walls support weight. Walls featuring larger dimensions, multiple studs at corners, or solid headers above doorways often indicate load-bearing construction. However, these visual clues aren’t foolproof—especially in homes with renovations that may have altered the original structure. When planning a home extension that involves removing or modifying walls, consulting a structural engineer is the only reliable way to determine if a wall is load-bearing.
Common Mistakes When Altering Load-Bearing Walls
The most frequent and dangerous error homeowners make is removing a load-bearing wall without proper structural replacement. Without appropriate support, the weight previously carried by the wall places stress on surrounding structures, potentially causing immediate collapse or gradual structural failure over time. Installing undersized support beams is another critical mistake, where the replacement beam isn’t strong enough to carry the load, resulting in sagging floors, cracked ceilings, and doors that no longer close properly. Improperly supported replacement beams are equally problematic—even correctly sized beams must transfer their loads to suitable supports like load-bearing walls or foundations.

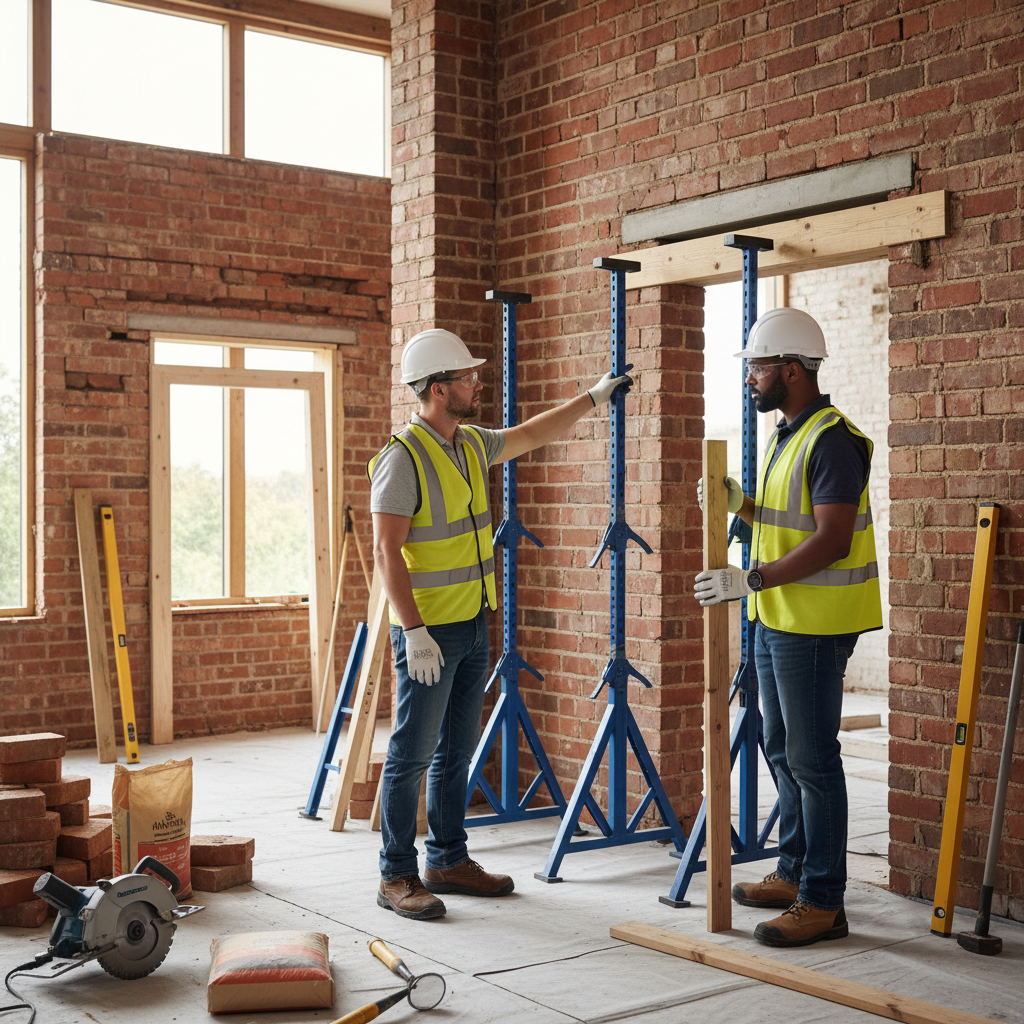

Many DIY renovators also fail to obtain necessary building permits, which are specifically designed to ensure structural changes meet safety codes. This oversight not only creates safety risks but can lead to expensive remediation requirements, failed home inspections, and insurance complications. Another common error is neglecting proper temporary support during construction, as the structure needs continuous support throughout the entire modification process. Without adequate temporary bracing, dangerous shifting or collapse can occur while work is underway, putting both the property and workers at serious risk. These mistakes emphasize why skipping professional engineering input during structural renovations can lead to disastrous outcomes.
Proper Support Solutions for Wall Removal

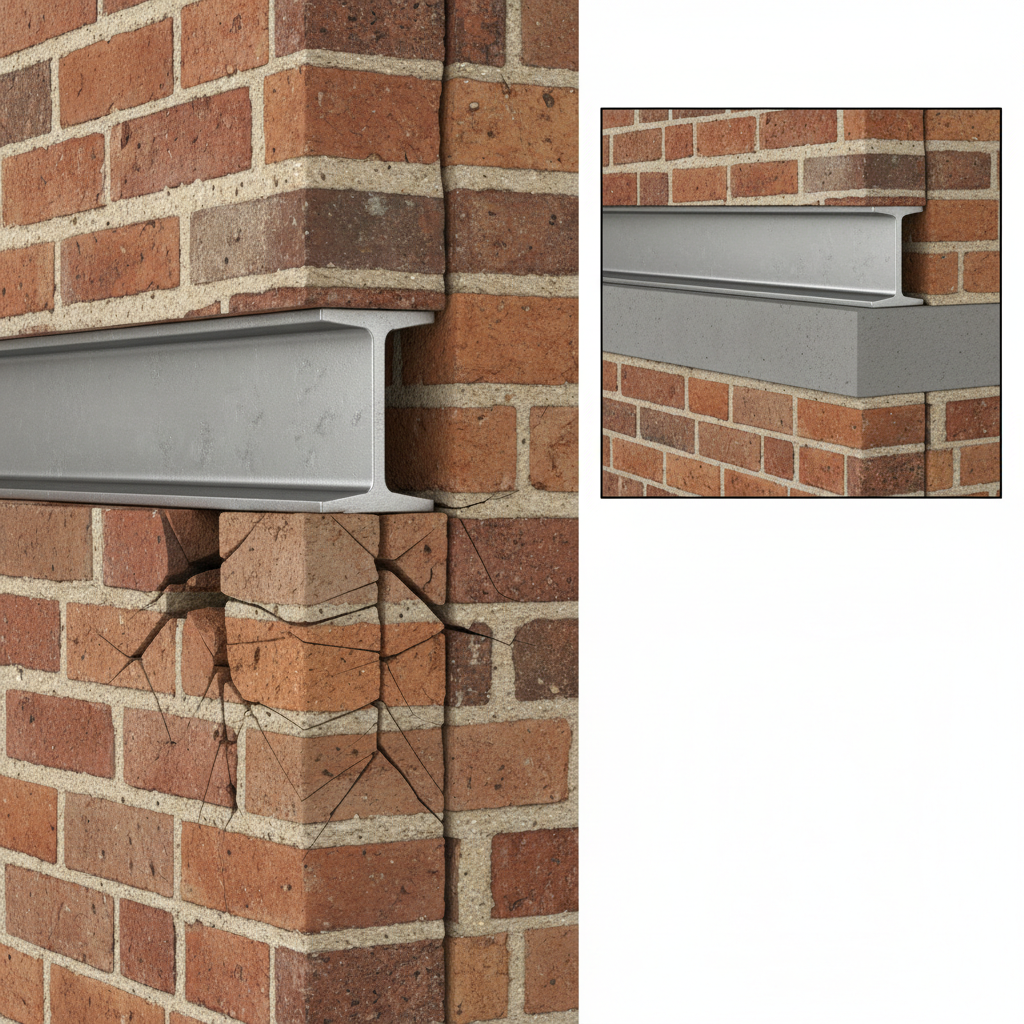

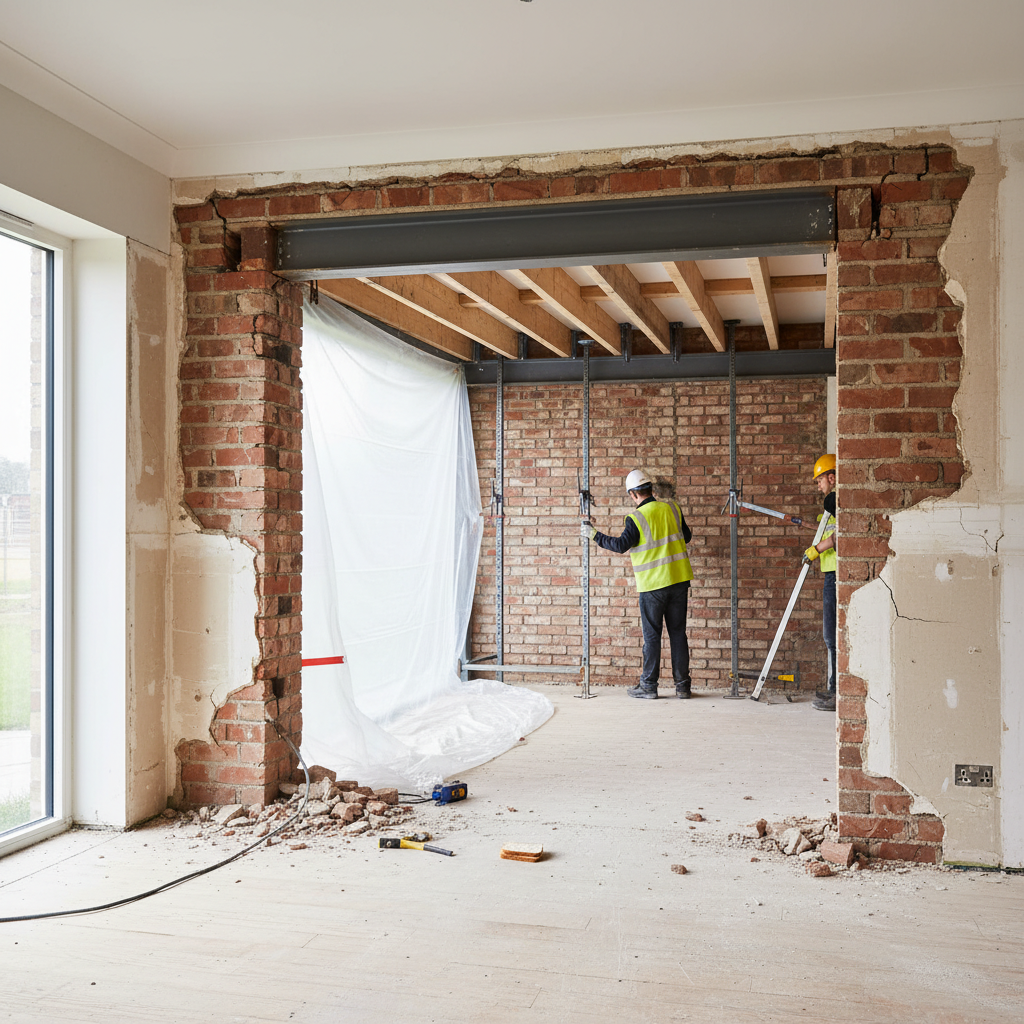

When removing a load-bearing wall, steel beams are often the preferred replacement solution due to their exceptional strength-to-size ratio. These beams, typically I-beams or RSJs (Rolled Steel Joists), can span significant distances while supporting substantial loads with minimal deflection. The specific beam size and type must be calculated precisely based on the span length, supported load, and building specifications. Steel beams typically rest on load-bearing walls or specially designed posts that transfer the weight directly to the foundation, ensuring the load path remains intact throughout the structure.
For smaller openings or where aesthetic considerations are paramount, reinforced concrete lintels or laminated veneer lumber (LVL) beams provide viable alternatives. Concrete lintels offer excellent compression strength and fire resistance, while engineered timber products like LVL beams combine natural aesthetics with manufactured consistency. Proper installation of any support solution requires careful temporary bracing, precise positioning, and secure connections to the existing structure. The beam must be fully supported before the wall below is removed, and all connections must be designed to resist both vertical loads and any lateral forces that might act on the structure. This careful engineering ensures the home remains stable and safe after the renovation is complete.
Calculating Load Requirements
Determining the correct load requirements for a replacement beam involves calculating all the weight that the original wall supported. This calculation must account for dead loads (permanent weight of the structure itself) and live loads (temporary weight from occupants, furniture, and environmental factors like snow). For typical UK residential construction, dead loads include the weight of floor joists, subflooring, finished flooring, ceiling materials, and any upper walls. Live loads vary based on the room’s intended use, with bedrooms, living areas, and attics each having different requirements according to building regulations.
The span length significantly influences beam selection, as longer spans require stronger, often deeper beams to prevent excessive deflection. UK building regulations specify maximum deflection limits, typically expressed as a fraction of the span (like 1/360). A structural engineer will calculate the required section modulus and moment of inertia to select a beam that can handle both the expected loads and stay within deflection limits. These calculations also account for the beam’s own weight and any point loads from posts or concentrated weights above. Professional engineers use specialized software and extensive reference tables to determine the appropriate beam specifications, ensuring the chosen support solution meets both immediate requirements and long-term performance expectations. Attempting these calculations without proper engineering knowledge is one of the top structural design mistakes in home renovations.
Signs of Improper Load Support
When load-bearing walls have been improperly removed or inadequately supported, several telltale signs typically emerge. Sagging or sloped floors above the removed wall are among the most common indicators, often noticeable when a marble placed on the floor rolls to one side. This sagging occurs because the replacement beam is deflecting under the weight it’s supporting, creating an uneven surface above. Cracks developing in walls, particularly diagonal cracks extending from door or window corners near the modification, suggest structural stress from inadequate support. These cracks indicate that the building is settling abnormally as it adjusts to the new, insufficient support structure.
Sticking doors and windows that previously operated smoothly often indicate frame distortion caused by structural movement. As the building shifts due to improper support, these openings become misaligned, making them difficult to open or close properly. Visible bowing or deflection in exposed beams is a serious warning sign that demands immediate attention, as excessive deflection may eventually lead to beam failure. Other indicators include widening gaps between walls and ceilings, separation of trim from walls, and unusual creaking or popping sounds as the structure shifts. If you observe any of these symptoms after a renovation involving load-bearing walls, consulting a structural engineer promptly is essential to assess the situation and develop appropriate remediation strategies.
Remediation for Structural Issues
Addressing structural problems resulting from improperly modified load-bearing walls requires careful assessment and appropriate remediation techniques. The first step always involves a thorough structural evaluation by a qualified engineer to determine the extent of the damage and the specific causes. This assessment typically includes examining the existing support system, measuring deflection, and evaluating the integrity of connected structural elements. Based on this evaluation, the engineer will develop a remediation plan that prioritizes safety while minimizing disruption to the home.
For undersized beams showing excessive deflection, solutions often involve installing additional support or replacing the beam entirely with an appropriately sized alternative. When beam supports are inadequate, new load-bearing posts or walls might be constructed to properly transfer loads to the foundation. In cases where structural damage has occurred, repairs might include reinforcing compromised joists, addressing foundation issues, or correcting wall and ceiling damage. Throughout the remediation process, temporary support systems must be installed to safely carry loads while the permanent solutions are implemented. While remediation can be costly and disruptive, addressing structural issues promptly prevents further damage and ensures the long-term stability and safety of your home. The expense of proper remediation underscores the importance of getting structural modifications right the first time through proper engineering and construction techniques.
Sources
UK Building Regulations Approved Document A – Structure
Institution of Structural Engineers Technical Guidance
Building Research Establishment (BRE) Structural Assessment Guidelines
