Steel Beam Installation Mistakes: What Homeowners Need to Know
Steel beam installations are critical structural elements in home renovations, particularly when creating open-plan spaces or extending properties. Incorrect installation can lead to serious structural issues, safety concerns, and costly remediation work that could have been avoided with proper planning and professional guidance.
Key Highlights
Here’s what you need to know about common steel beam installation mistakes:
- Installing undersized beams can lead to excessive deflection and structural failure
- Inadequate end bearing support is a frequent cause of beam settlement
- Skipping building regulations approval can result in enforcement action and resale issues
- DIY installations without professional guidance often lead to costly remediation work
- Proper connection details between beams and supporting structures are essential for safety
Planning the Steel Beam Installation
The most critical phase of any steel beam installation happens before any construction work begins. Many homeowners make the mistake of rushing through the planning stage, failing to obtain proper structural calculations from a qualified engineer. These calculations determine the correct beam size, taking into account span length, supported loads, and the building’s existing structure. According to the Institution of Structural Engineers, inadequate planning is responsible for approximately 60% of all remedial structural work in residential properties.
Attempting to determine beam specifications without professional input often leads to undersizing—one of the most common and dangerous errors in DIY renovations. Undersized beams can deflect excessively under load, causing cracks in finishes, uneven floors, and in extreme cases, structural failure. A proper planning process should include a site survey, structural assessment, load calculations, and detailed installation specifications that comply with current building regulations.
Preparing for Building Control Approval
Many homeowners mistakenly believe that steel beam installations fall under permitted development rights and don’t require formal approval. In reality, structural alterations that involve removing or modifying load-bearing elements always require building regulations approval. Skipping this crucial step can result in enforcement action, difficulties when selling your property, and potentially dangerous living conditions.
Building control approval ensures that your installation meets safety standards and that the work is inspected at key stages. This process requires submitting structural calculations and detailed plans before work begins. The Royal Institution of Chartered Surveyors reports that approximately 30% of home renovation projects proceed without proper approvals, with many homeowners facing expensive remediation costs later. The approval process also provides important documentation that future buyers of your property may request during surveys.
Understanding Load Paths and Support Requirements
A fundamental mistake in steel beam installations is failing to understand how loads transfer through a structure. When a load-bearing wall is removed, its weight doesn’t disappear—it must be redirected through the new beam to appropriate support points. These support points, typically walls or columns, must have adequate foundations to handle the concentrated loads. The Structural-Safety organization identifies inadequate support as a leading cause of structural failures in residential renovations.

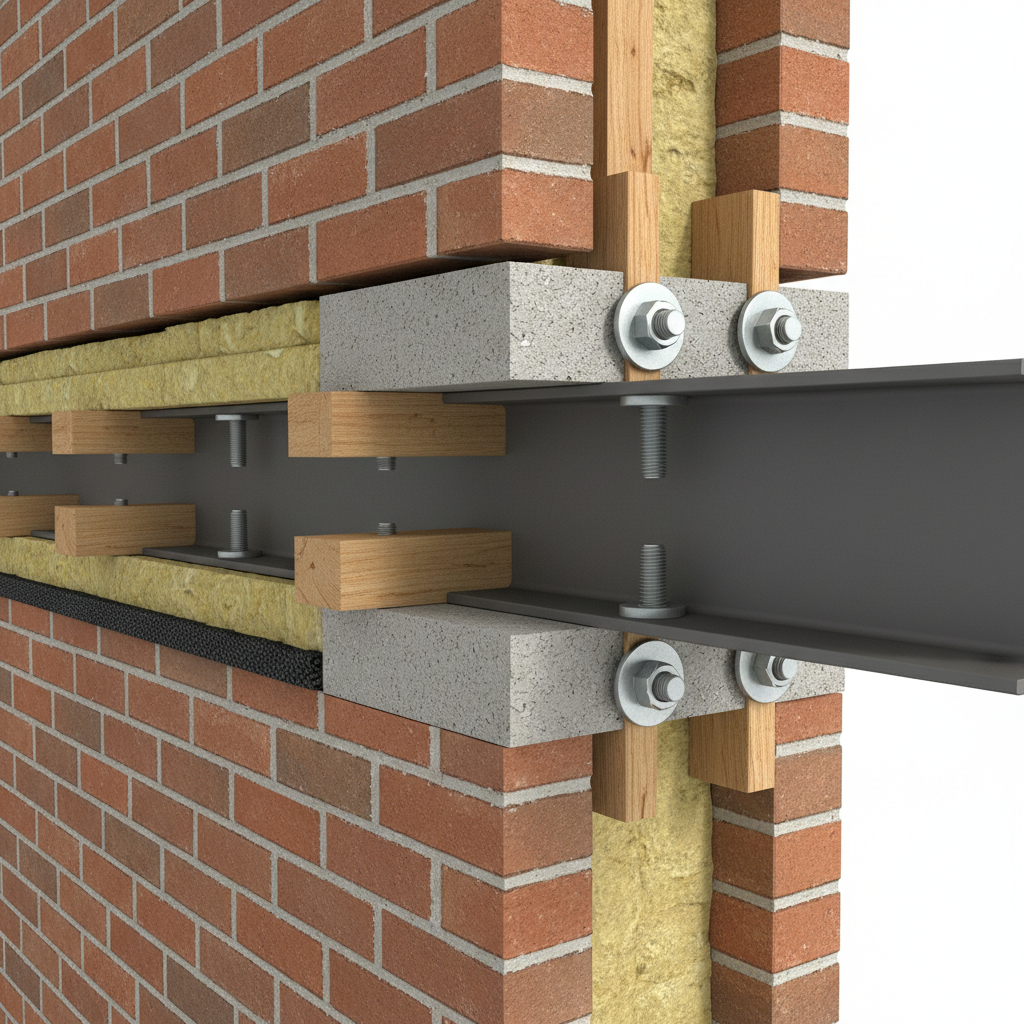

End bearing—where the beam meets supporting walls—is particularly crucial. Industry standards typically require a minimum of 150mm bearing length on solid masonry, but this can vary based on load calculations and wall construction. Insufficient bearing length can cause localized crushing, settlement, and even beam displacement. Additionally, many DIY installations fail to account for the need for proper steel-to-steel connections when beams join columns or other beams, often omitting essential bolted or welded connections that ensure structural integrity.
Selection and Specification of Correct Beam Types
Choosing the appropriate beam type and size is where many projects first go wrong. Universal beams (I-sections) and universal columns (H-sections) have different load-bearing properties and are suited to different applications. Many homeowners make the mistake of selecting beams based solely on depth, without considering section properties like second moment of area or section modulus, which determine a beam’s strength and stiffness.
Deflection limits are another critical consideration often overlooked. The Building Regulations stipulate that beams should typically deflect no more than span/360 under full load. For a 4-meter span, this means a maximum deflection of approximately 11mm. Exceeding these limits can result in cracked finishes and serviceability issues, even if the beam isn’t at risk of failure. Steel grade selection also matters—S275 and S355 are common in residential applications, with the numbers referring to minimum yield strength in N/mm². Using lower-grade steel without adjusting the beam size accordingly is a subtle but significant mistake.
Professional Installation Practices
The physical installation of steel beams requires specialized knowledge and equipment that most DIY enthusiasts simply don’t possess. A common installation mistake is inadequate temporary support during the removal of load-bearing elements. Proper temporary works should include acrow props or similar supports on either side of the wall being removed, with appropriate spreader plates to distribute loads to the floor. The Health and Safety Executive reports that temporary works failures are among the most dangerous aspects of residential structural modifications.
Lifting and positioning heavy steel sections safely requires proper equipment and multiple skilled workers. A typical 4-meter universal beam can weigh over 200kg, creating significant manual handling risks. Professional installers use lifting equipment, coordination, and precise positioning techniques to ensure beams sit correctly on their supports. They also understand the importance of leveling and packing beams properly—using steel shims rather than inappropriate materials like timber, which can compress over time and lead to settlement.
Finishing and Fire Protection Requirements
Once installation is complete, many homeowners overlook crucial finishing details that affect both safety and durability. Fire protection is perhaps the most critical overlooked element—exposed structural steel can lose strength rapidly in a fire, potentially leading to collapse. Building regulations typically require steel beams to achieve 30 minutes of fire resistance in domestic applications, usually through encasement in fire-resistant plasterboard or the application of intumescent coatings.
Corrosion protection is another finishing consideration that affects long-term performance. All structural steel should be properly primed and painted, particularly in areas with potential moisture exposure like kitchens and bathrooms. Inadequate protection can lead to rust formation, which reduces the section size and structural capacity over time. Additionally, many installations fail to consider aesthetics and integration with the surrounding space. Professional installations include proper boxing and finishing that make the structural elements either blend seamlessly with the surroundings or become an intentional design feature, depending on the homeowner’s preferences.
Conclusion
Steel beam installations represent a significant structural modification that demands professional input, proper planning, and quality execution to ensure safety and performance. The most successful projects combine thorough engineering with skilled installation and attention to detail in both structural and finishing aspects. By understanding and avoiding common mistakes, homeowners can ensure their renovation projects provide the desired open spaces without compromising the structural integrity of their homes.
